MANIFOLD

HAMMER

Centralizes multiple outlets into a single point and reduces parts, installation time and costs.

VIEW FAMILY DOWNLOAD

HAMMER manifold for agricultural irrigation sectorization

The new HAMMER manifold is a developed and patented solution designed to optimize water sectorization in agricultural irrigation systems and hydraulic infrastructures, reducing components, installation times and material consumption.
COMPACT STRUCTURE

Brings together multiple outlets in a single point.

PART SAVINGS

Fewer glued joints, fewer installation steps.

SUSTAINABLE DESIGN

Fewer materials required, reducing necessary interventions.

Advantages

Facilitates zone control.

Allows outlets to be centralized in a single point, improving system organization and enabling independent management of each irrigation sector.

Faster installation.

Its compact design reduces assembly times and handling requirements, resulting in a more organized and efficient field installation.

Reduces the number of parts and glued joints commonly used in traditional systems.

By replacing multiple connections with a single collector, joints, critical points and potential leaks are minimized, simplifying installation.

PN 10 bar design with maximum strength and durability.

Manufactured to operate at pressures up to 10 bar, ensuring reliable performance and long service life in demanding agricultural and hydraulic applications.

- USE -

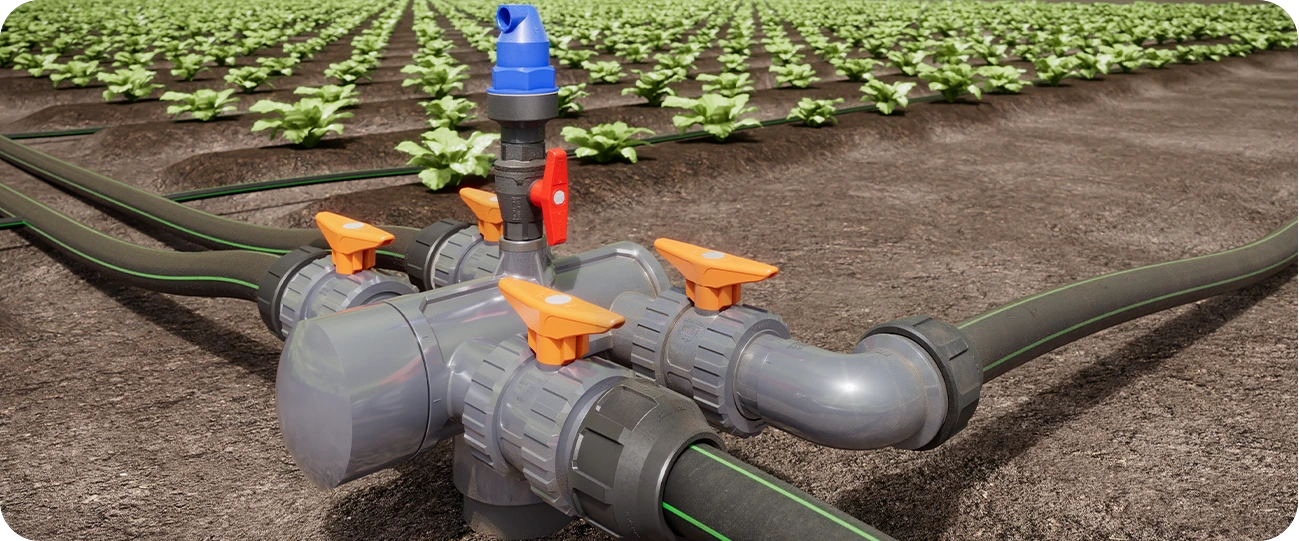

Ideal for crops divided into zones or parallel lines, providing greater precision in water distribution and more agile, centralized irrigation management.
Family 01/02
PVC-U Pressure Fittings
ITEM 988

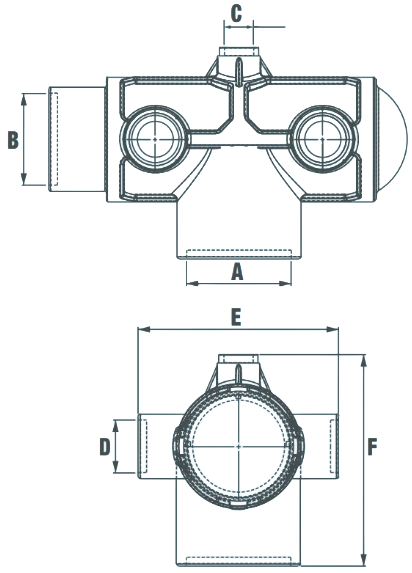

Manifold “HAMMER”
CODE
Ø A - inlet
C
E
01645
125
1"
240
WEIGHT
B
D
F
4,100
110
63
253

Need more information?

If you need more information about this product, contact us directly.

Our technical team can help you select the most suitable solution according to the application, diameter and operating conditions.

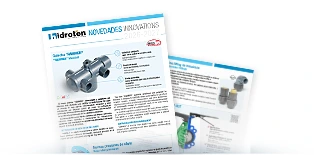

custom.HAMMER.DESCARGAR | Válvula de mariposa PP-RCT en instalación HVAC

Manifold
HAMMER

DOWNLOAD

custom.HAMMER.Si necesitas más información sobre este producto contacta con nosostros directamente.

I accept the privacy policy.

Preguntas Frecuentes

The Hidroten Hammer irrigation collector is an advanced water distribution system designed to centralize multiple outlets into a single point. This hydraulic collector enables the efficient organization of agricultural irrigation systems, landscaping installations and hydraulic infrastructures, facilitating flow sectorization. Thanks to its optimized design, it improves water flow control and reduces installation complexity compared to traditional systems.

The Hammer water distribution collector stands out for reducing the number of required parts, connections and joints. This results in faster installation, lower risk of leaks and easier maintenance. Unlike traditional collectors, this irrigation system optimizes assembly, improves hydraulic installation reliability and enables more efficient water management in agricultural and technical projects.

The Hammer collector is designed for a wide range of applications, including agricultural irrigation systems, landscaping installations, water distribution networks and civil engineering projects. It is especially useful in installations where flow needs to be divided into different irrigation sectors or zones, allowing more precise water management and improved hydraulic efficiency.

Yes, the Hammer collector helps reduce costs in irrigation and water distribution installations by decreasing both material usage and assembly times. Since fewer fittings and connections are required, both installation and maintenance costs are optimized. This makes it a cost-effective solution for agricultural projects and hydraulic infrastructures seeking efficiency and durability.

The Hammer irrigation collector improves water efficiency by enabling a more organized and centralized water distribution. It facilitates irrigation sectorization, optimizing resource usage and allowing more precise zone control. This results in less water waste and improved performance in crops and green areas.

Yes, the Hammer Manifold contributes to sustainability in hydraulic installations by reducing material usage and minimizing connections. This lowers the environmental impact of the installation and promotes more efficient irrigation systems. In addition, by optimizing water consumption, it supports the sustainable management of water resources.

The system supports multiple configurations adapted to each project, from simple installations to complex water distribution layouts. It is ideal for sector-based irrigation systems, parallel lines and agricultural installations requiring flexibility in flow distribution. Its modular design makes adaptation to different hydraulic requirements easy.

Choosing the Hammer Manifold means investing in an efficient, reliable and optimized water distribution solution. It offers clear advantages such as reduced costs, easier installation, lower risk of leaks and improved irrigation control. As a result, it is becoming an increasingly popular choice in agricultural irrigation projects and modern hydraulic systems.
